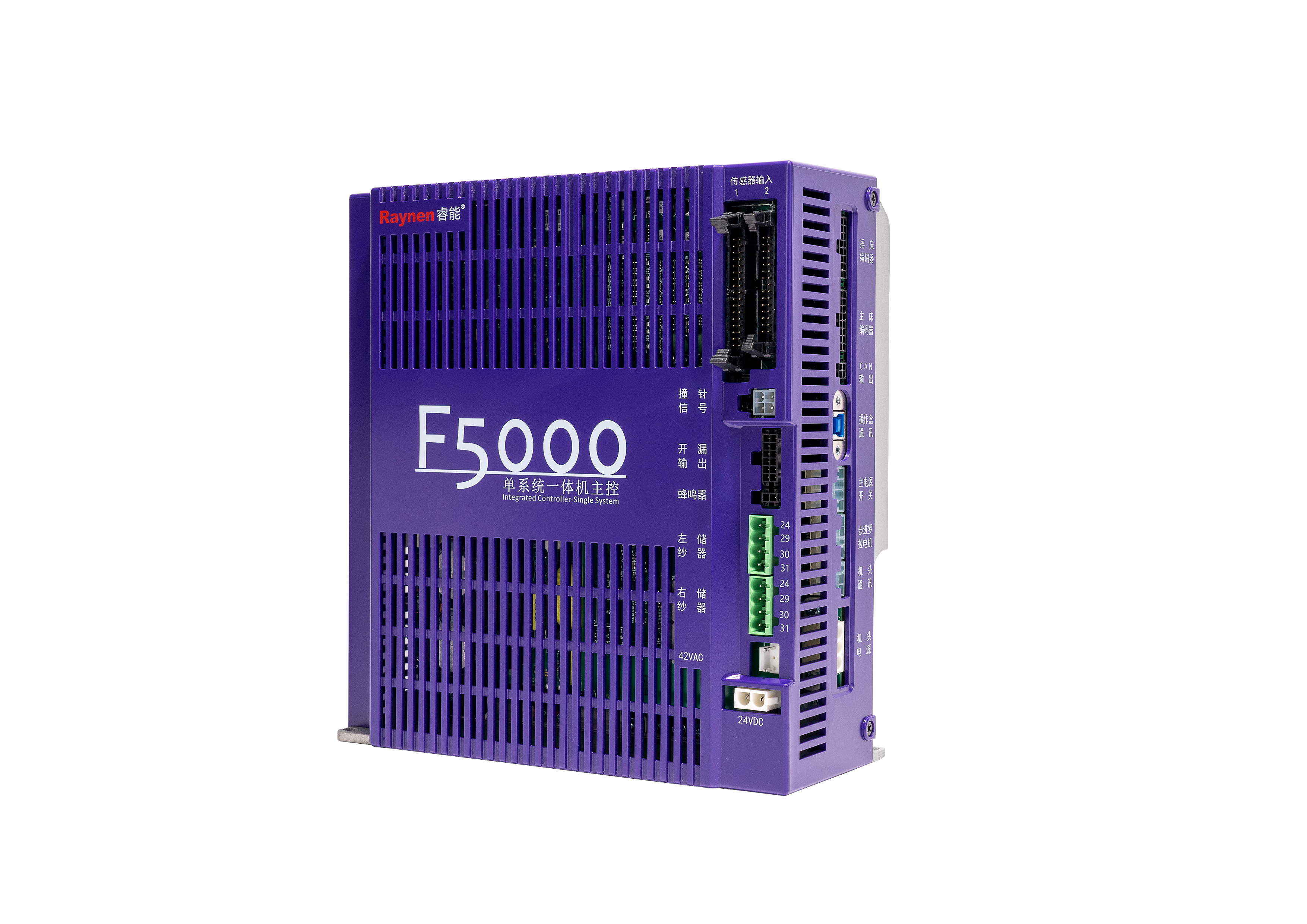

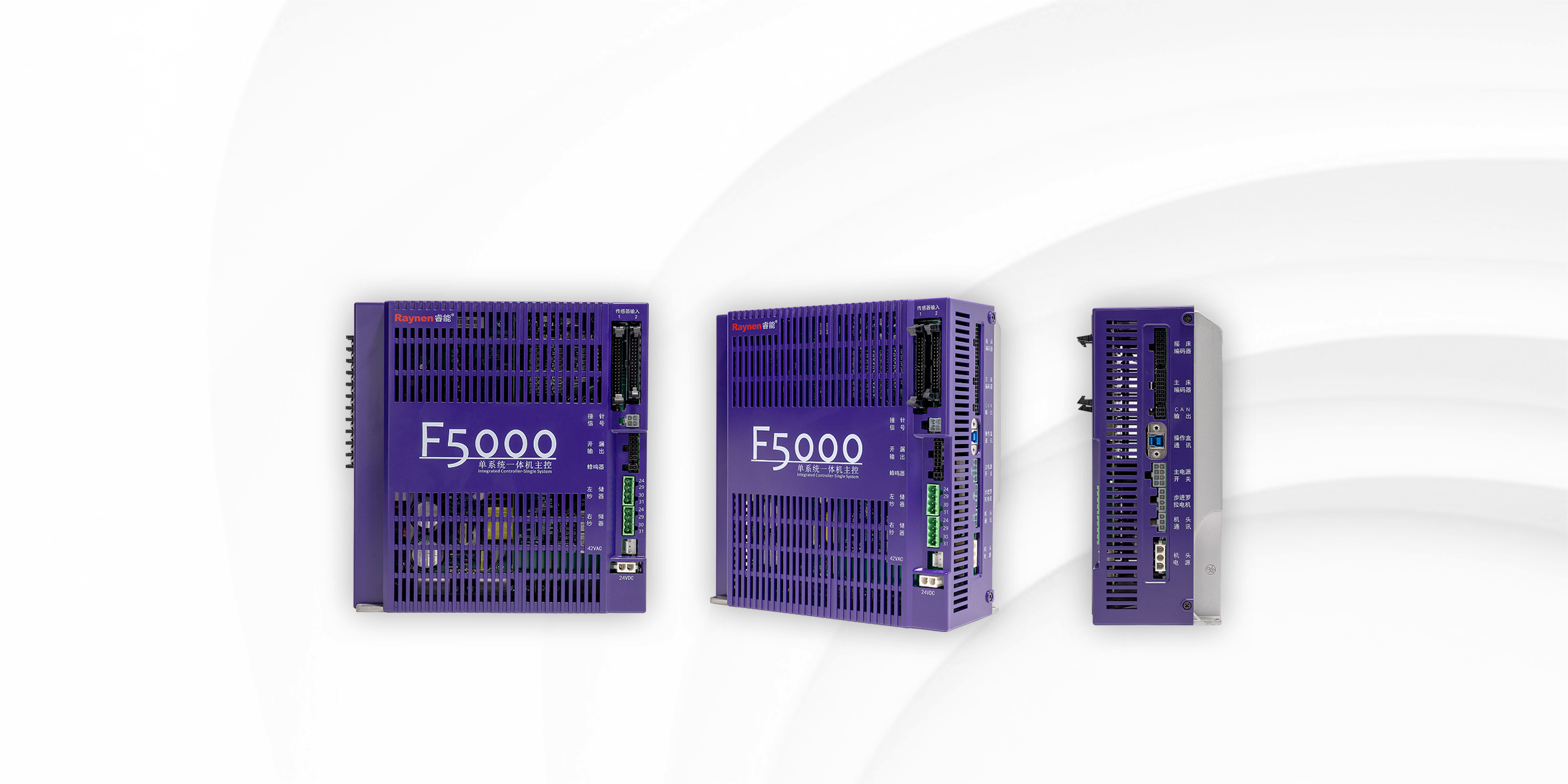

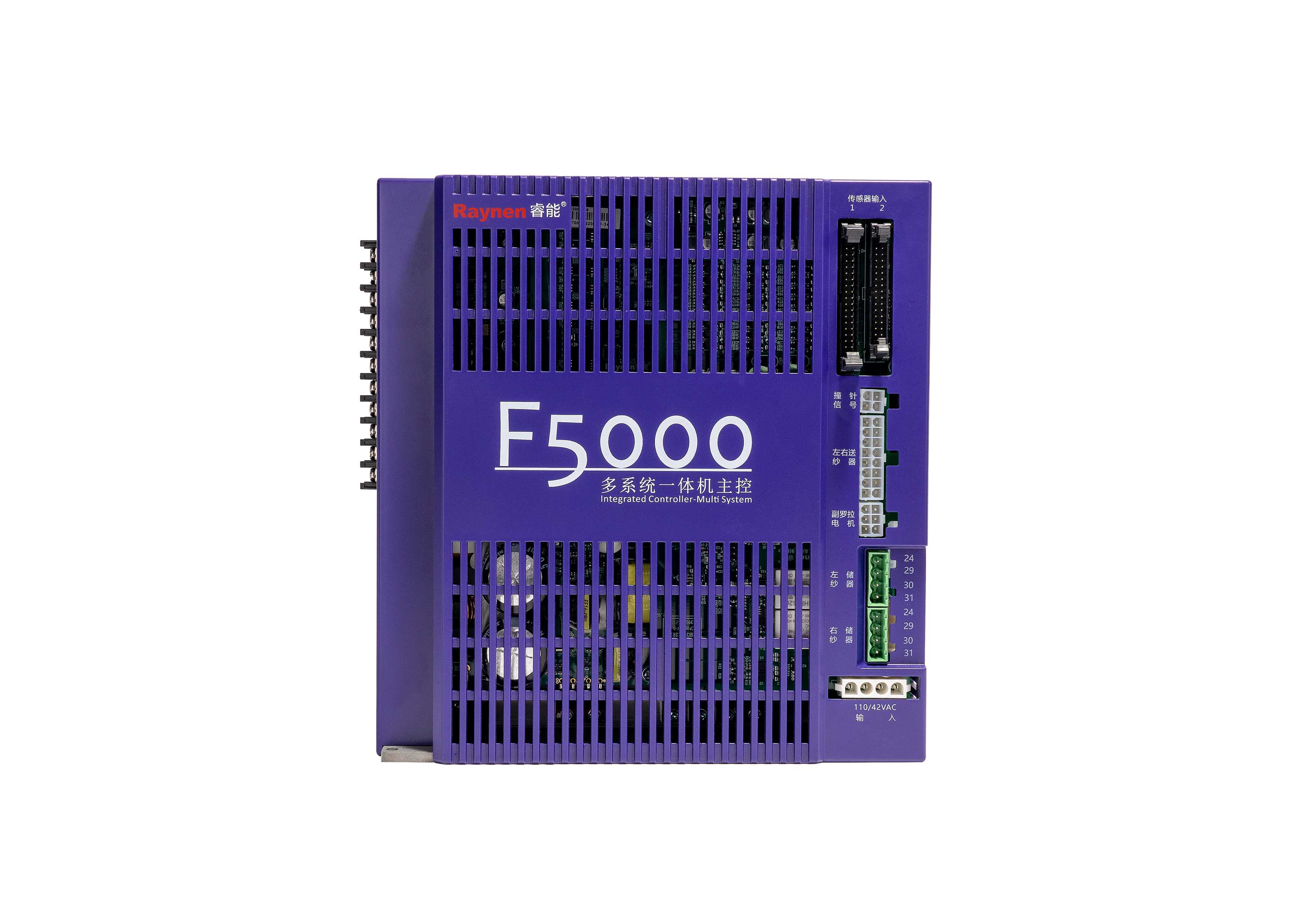

F5000 Series Electronic Control System of Flat Knitting Machine_横机电控系统

The electronic control system is a core component of the computerized flat knitting machine. Like a sweater printer, it can turn the sweater or vamp design into reality by the pattern-making system. It mainly consists of a distribution board, main control box, servo, comb, roller drive, carriage board and related cables.

集成化和模块化的控制系统

标准自动化系统设计理念系统稳定可靠售后简单方便

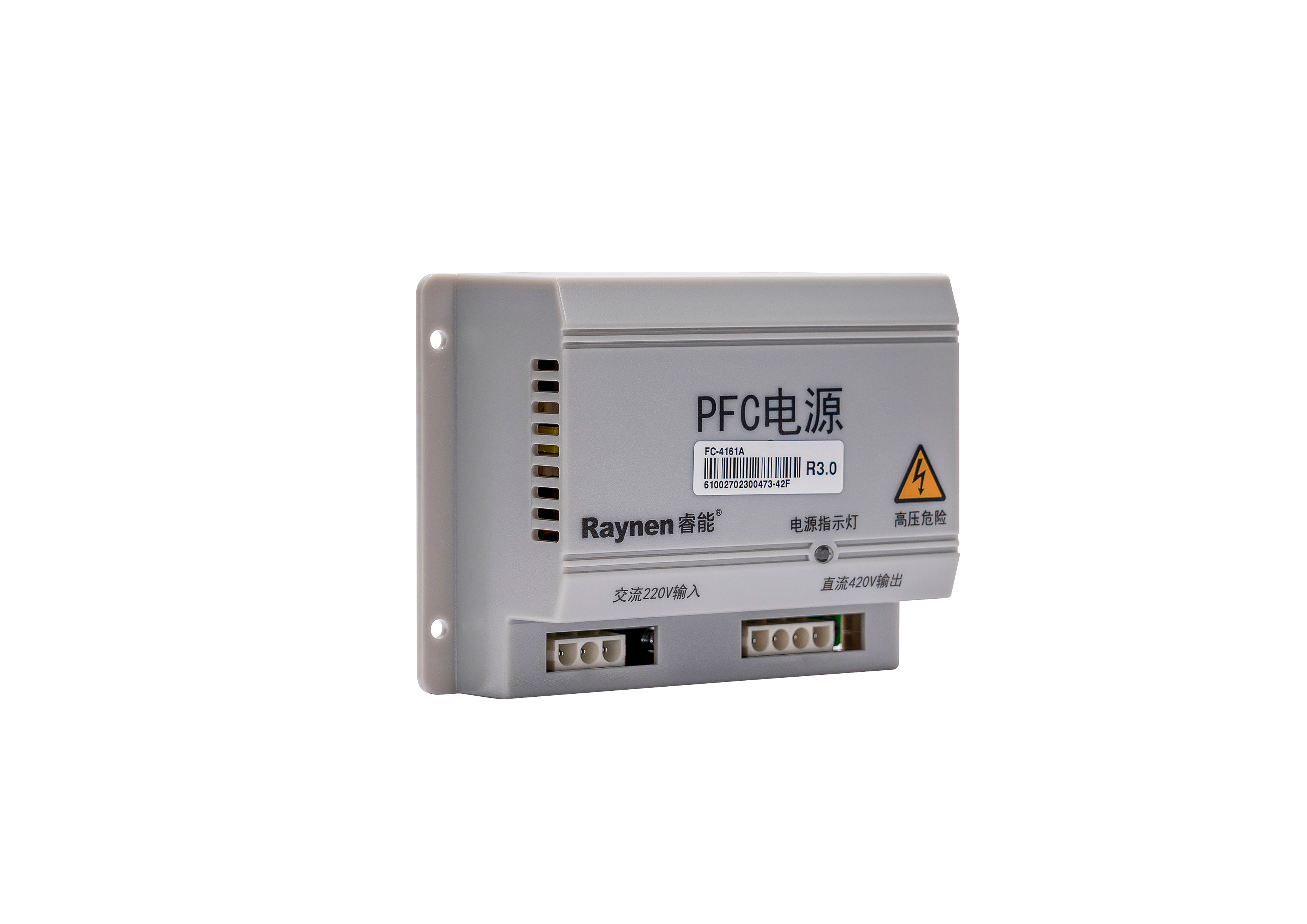

PFC 电源

宽范围电压输入，恒定电压输出，在市电等外部环境导致供电不稳定情况下保持编织稳定，让掉电保护更可靠

覆盖横机全系列

毛衫针织横机电脑控制系列、鞋面针织横机电脑控制系统

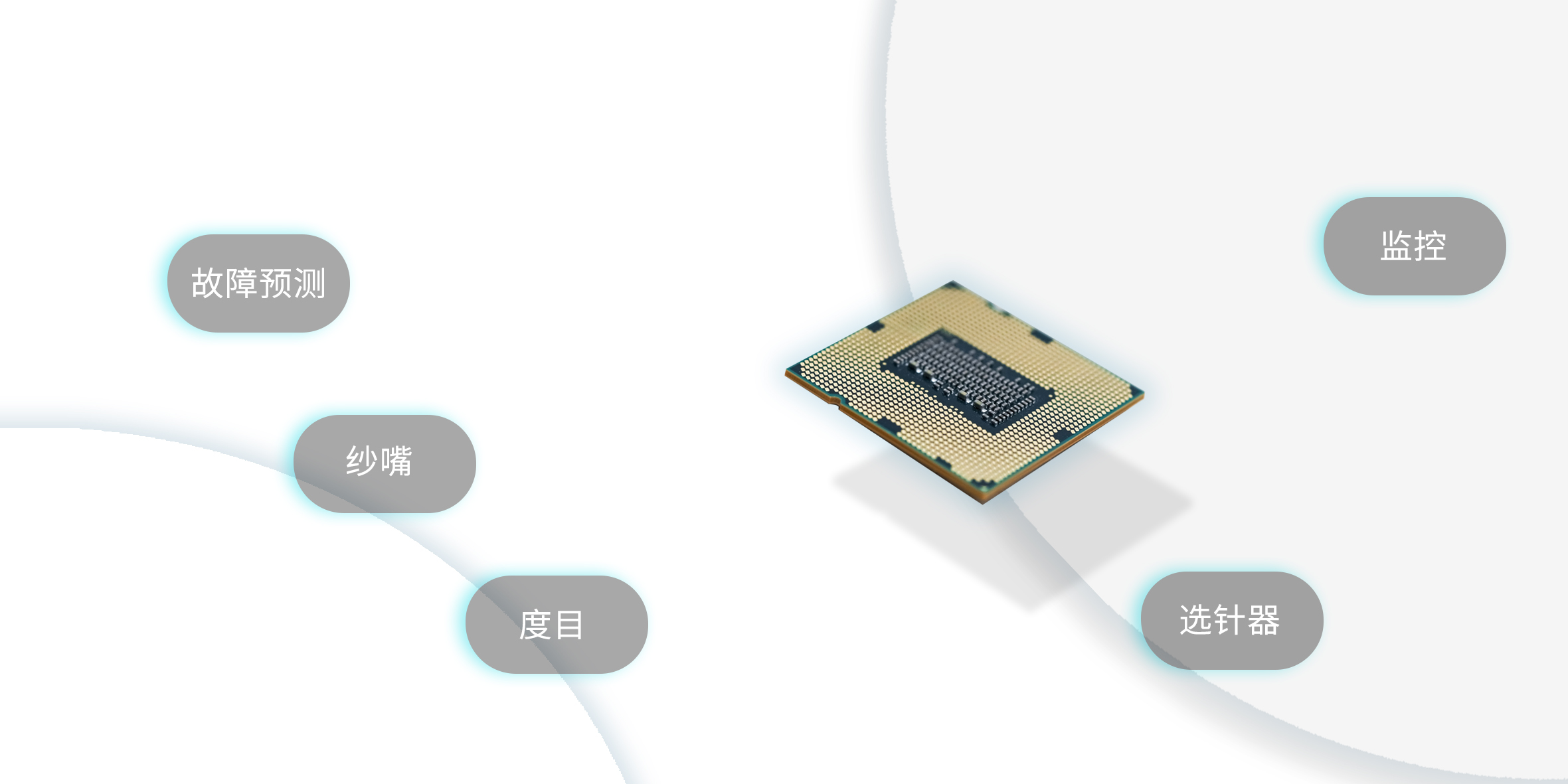

智能数据分析和监控系统

设备故障预测与监控、纱嘴、度目、选针器等机构短路断路保护

支持2G/3G/4G/WiFi多种无线通讯扩展

Basic specifications

Voltage range

Single-phase & three-phase AC voltage input 180 V ~ 415 V
CPU

Dual-core

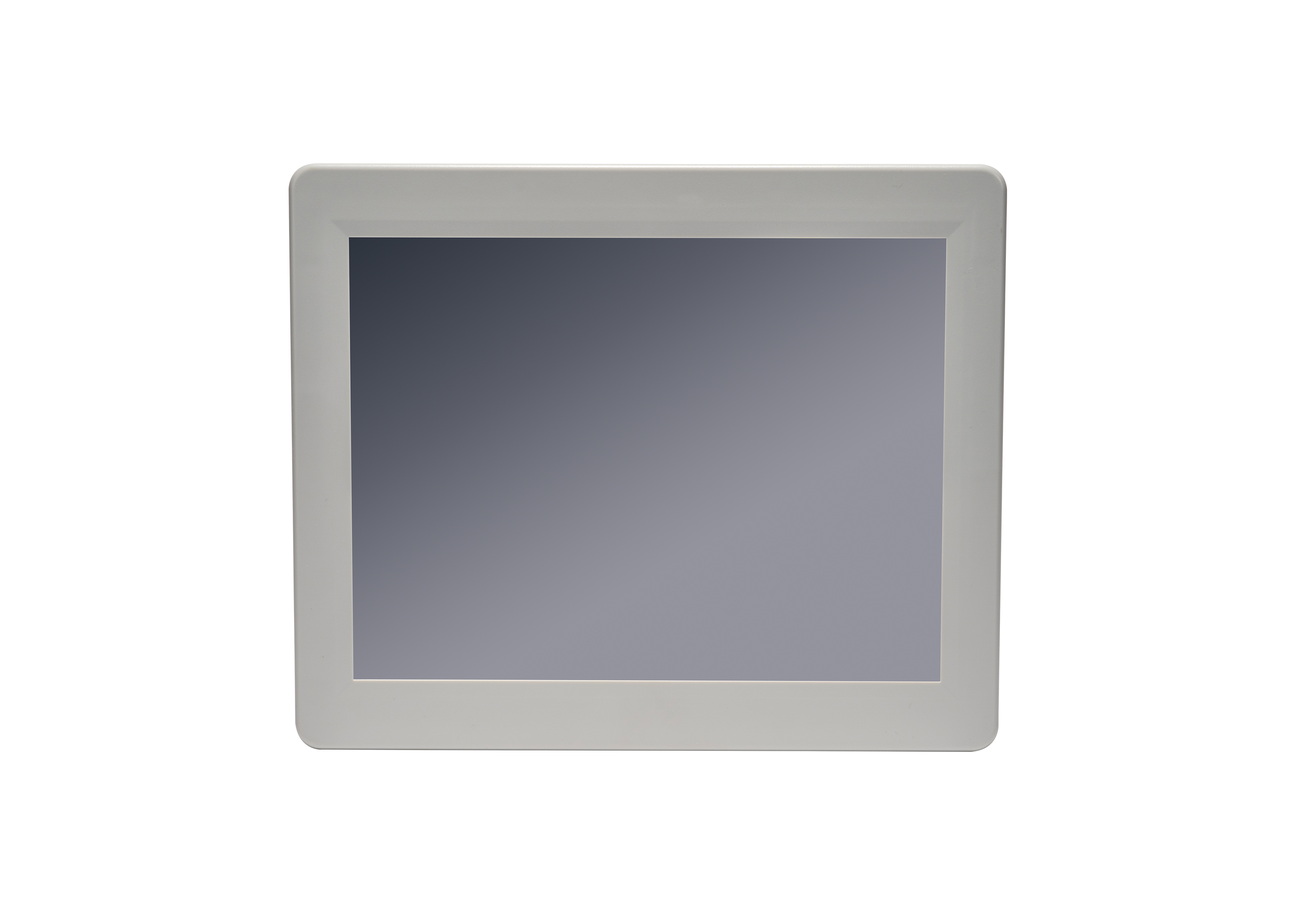

Display screen

10.1-inch full touch capacitive tablet, 10.4-inch full touch capacitive tablet, 10.4-inch full touch resistive + touch screen are provided to control RS485 upper controller
Speed

1.9 meter/ second
Color system

8x4

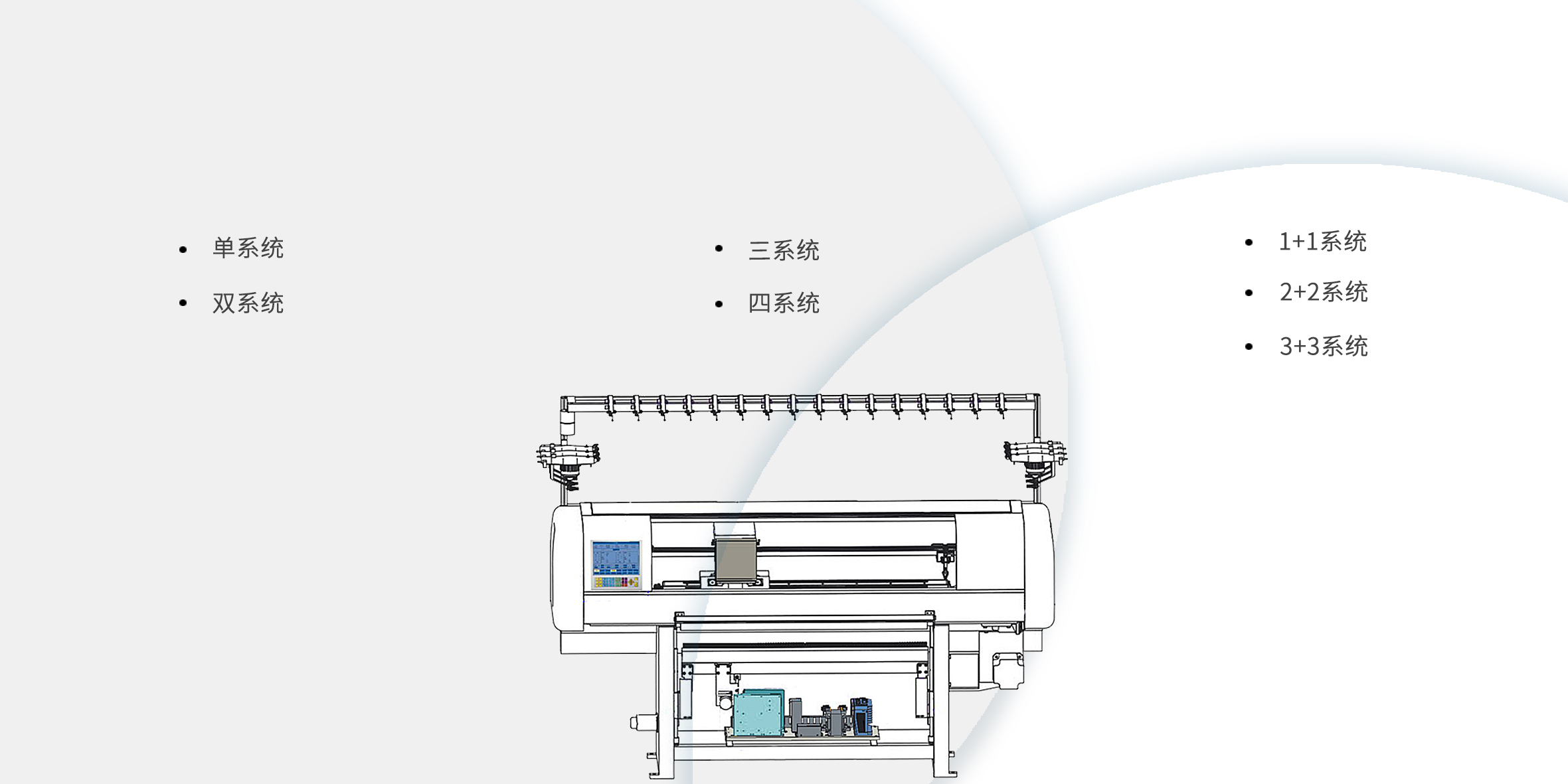

Machine carriage system

Single • dual • three • four • 1+1 • 2+2 • 3+3 system
Needle bed GG

3, 3.5, 4, 5, 7, 9, 12, 14, 16 and 18 GG
Needle bed shaker

Single-side, single-motor and dual-motor concentrato
Needle selector

2-, 3-, 4-, 6-, 8- and 10-segment (two-way self-holding), 6-segment (one-way) electromagnetic needle selection, and single-segment needle selection
Density type

Stepper motor drive, servo motor drive
Needle bed shaker type

Servo motor drive, stepper motor drive
Main roller

Stepper motor drive, torque motor drive, servo motor drive
Comb system

Torque motor drive, stepper motor drive
Automatic stop system

Emergency stop, collision avoidance, yarn break, yarn knot, cropping, needle breakage, floating knit, back roll, piece completion, stitch step-out, etc.
Basic functions

Knitting, transfer, tuck, back stitch, pointelle, split stitch, jacquard, intarsia and a variety of patterns
Main motor

Servo motor AC220V/1000W, AC220V/1500W
RAM

256MB
Memory space

512MB-5000 patterns
Network

WiFi/ 5G/ 4G/ Bluetooth
Language

Chinese, English, Russian, Indonesian, Malaysian, Turkish, Portuguese, Arabic, Farsi, Bengali, French and Spanish
